Otis ABE21700X8 PULSE™ Coated Steel Belt Monitor Board for Gen2 Elevators – Genuine OEM Replacement Part

1. Product Overview

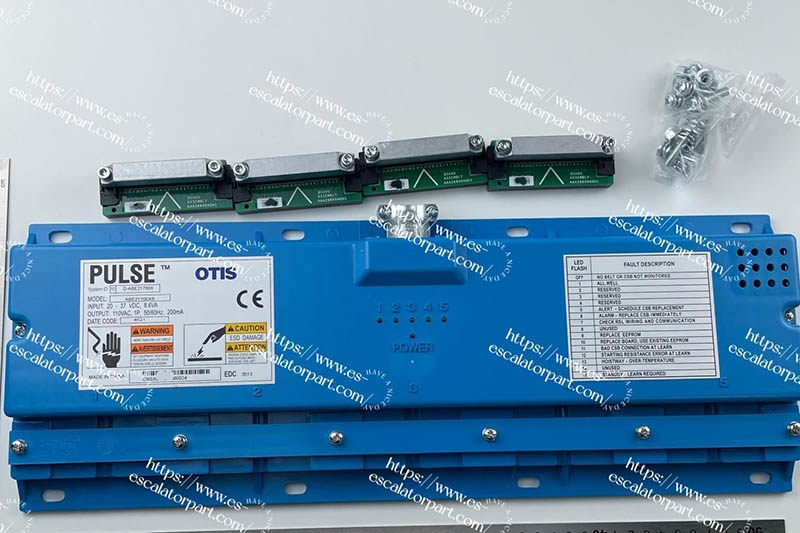

The ABE21700X8 (material code: D-ABE21700X) is a specific model of the Otis PULSE™ elevator coated steel belt (CSB) monitoring system control board, primarily designed for realtime monitoring of elevator steel belt operating status and breakage protection. This unit consists of a blue main control housing, a separate sensor reader board, and associated mounting hardware. It is a standard electronic control component for floor position detection in mainstream Otis passenger elevators. The control board continuously tracks the strength condition of the internal steel cords within the coated steel belt through resistance monitoring technology, issuing early warnings or alarm signals when belt damage, wear, or system abnormalities are detected.
The ABE21700X8 is part of the ABE21700X series (covering suffix versions X1 through X9), all of which share the same detection logic but are tailored to different production years of Otis elevator control systems. With original factory circuit programming and voltage parameters fully matched to corresponding Otis elevator controller cabinets, it supports direct dropin replacement without modification. This product is widely used in office buildings, residential communities, and other Otis elevator maintenance and retrofitting projects worldwide, as well as for bulk stocking by overseas elevator maintenance providers, retail distribution by parts suppliers, and complete elevator refurbishment export shipments. The ABE21700X8 is a critical spare part for meeting the coated steel belt safety management requirements of the global inservice Otis Gen2 elevator fleet.

2.Core Product Features
• Genuine Otis Quality: Original Otis PULSE™ CSB monitor board, manufactured in strict compliance with Otis Gen2 elevator safety standards. Direct dropin replacement – no debugging or reprogramming required.
• Modular Split Design: Main control housing combined with multiple independent sensor/reader boards in a split configuration. Individual boards can be replaced separately if damaged, resulting in lower maintenance costs.
• Precise Diagnosis: Quantitatively determines the health status of the coated steel belt through resistance value changes, providing data support for maintenance decisionmaking.
• RealTime Monitoring: Continuously tracks resistance variations within the internal steel cords of the coated steel belt, issuing timely warnings or alarms when belt strength declines.
• Fault SelfDiagnosis: The control board features a selftest function that can identify faults within the monitoring system itself (such as RSL communication errors, EEPROM damage, etc.), preventing false alarms or missed detections.
• Remote Monitoring Compatibility: Supports connection to the REM (Remote Elevator Monitoring) system, enabling remote transmission and centralized management of belt status data

3.Technical Parameters

Parameter	Specification
Complete Model	ABE21700X8
System ID	D-ABE21700X
Compatible Brand	Otis
Input Power Supply	20 ~ 37 VDC, 8.6 VA
Output Specifications	110 VAC, Singlephase, 50/60 Hz, 200 mA
Structural Configuration	Main controller + 4 separate sensor/reader boards + mounting fasteners kit
Protection Features	ESD protection, EMI shielding
Certification	CE certified
Primary Compatible Elevator Models	Otis Gen2 (secondgeneration coatedsteelbelt machineroomless elevator) full series
Country of Origin	China
Unit of Measure	SET



4.Product Function Description
• Precise Car Floor Positioning: Detects magnetic vane signals in the hoistway, continuously tracks the car's floor position in real time, and transmits accurate positioning data to the elevator main control board.
• Leveling Accuracy Control: Precisely calculates stopping positions, keeping elevator leveling errors within standard tolerances, ensuring smooth and reliable door opening and closing.
• Speed Change Logic Management: Automatically triggers deceleration and leveling stop commands based on floor distance signals, delivering a comfortable starting and stopping experience.
• Fault SelfDiagnosis with Code Indication: Builtin selftest program provides LED flash codes corresponding to specific faults, visually indicating wiring, sensor, communication, and other system anomalies.
• Floor Data Correction: Continuously recalibrates floor position data throughout elevator operation, preventing floor display errors and floorskipping faults.
• Overload & ESD Protection: Safeguards internal circuits against transient electrostatic discharge (ESD) and voltage surges, extending the service life of the electronic control assembly.

5.Precautions for Installation & Operatio
• PowerOff Operation: Before installing or replacing the control board, always disconnect the elevator main power supply and perform LOTO (Lock Out Tag Out) procedures to ensure safe working conditions.
• Gap Compliance: The gap between the sensor reader board and the hoistway magnetic vanes must be adjusted in accordance with original factory specifications. Excessive or insufficient clearance will result in signal sensing failure.
• ESD Protection: This control board is a precision electronic assembly. ESD protection measures must be taken during handling. Avoid direct contact with circuit components and connector pins. Failure to wear an ESD wrist strap or to operate on an antistatic workbench may result in damage to onboard components.
• Warranty Void if Disassembled: Unauthorized disassembly of the blue main control housing, modification of internal wiring, or alteration of original factory firmware is strictly prohibited. Any unauthorized disassembly will void the product warranty.

6.Supply & Service
• Genuine Original Quality Guarantee: The supplied ABE21700X8 elevator CSB monitor is originally manufactured by Otis, ensuring reliable quality.
• Flexible Order Quantities: We offer both singlepiece retail and fullcontainer bulk orders for export, catering to the procurement needs of overseas elevator maintenance companies, parts distributors, and complete elevator manufacturers in Southeast Asia, Europe, Australia, and other regions.
• Service Support: We provide comprehensive aftersales support and assist with the preparation of foreign trade documents, including packing lists and invoices.
• Warranty Service: Brandnew original products come with a standard warranty period. We strictly control the shipment of any defective items.
• Packaging & Logistics: Custom shockproof and compressionresistant export cartons are used, suitable for domestic express, sea freight, and air freight crossborder logistics to minimize transit damage.

This manual is for product reference only. For specific installation and operation procedures, please refer to the official Otis technical manual, and all work must be performed by certified professional technician.
