Elevator Single-Line Rail Calibration Ruler SJT-56100, Magnetic Guide Rail Measuring Gauge for Elevator Maintenance Project

1. Product Overview
SJT-56100 is a portable guide-rail measuring tool integrating measurement, leveling, positioning and auxiliary fastening. Constructed of stainless-steel plate with aluminum-alloy high-strength magnetic blocks, it is equipped with high-precision spirit level and measuring scale. Fixed onto the end face of T-type guide rails by its L-shaped magnetic base, it performs guy-wire alignment measurement for guide-rail verticality, spacing and parallelism, quickly detecting rail offset to reduce faults such as car shaking and guide-shoe wear. Featuring magnetic-type design for quick assembly and disassembly, it requires no bolt-tight clamping and greatly improves on-site adjustment efficiency. Compatible with mainstream T-type guide rails of major elevator brands, it supports preliminary installation and alignment for passenger elevators, high-rise elevators and highspeed elevators. It caters to procurement needs of overseas elevator EPC contractors, foreign maintenance service providers and elevator spareparts distributors, and serves as a commonly-used measuring tool for elevator foreigntrade tool kits.

2.Core Product Features
• High-strength Magnetic Fixing: High-power magnetic blocks firmly attach to guide rails. No repeated bolt-tightening clamping required for fast assembly and disassembly.
• Stainless-Steel Ruler Body: Main body made of stainless steel with black oxidation treatment, resistant to site humidity and dust and resistant to deformation.
• Built-in Spirit Level: Integrated bubble level quickly establishes measurement reference and reduces manual measurement deviation.
• Laser-etched Metric Scale: Laser-etched markings are wear-resistant and non-fading for straightforward and clear readings.
• Multiple Versions Available: 6-magnet, 12-magnet and 18-magnet editions are available to satisfy diverse application requirements.
• Wide Compatibility: Compatible with mainstream T-type guide rails from major brands, suitable for preliminary alignment of passenger elevators, high-rise elevators and highspeed elevators.

3.Technical Parameters

Parameter	Specification
Product Model	SJT-56100
Product Name	Elevator Single-Line Guide-Rail Alignment Gauge / Magnetic-Type Rail Calibration Ruler
Ruler Body Material	Stainless Steel
Magnetic Block Material	Aluminum Alloy + High-Strength Magnets
Available Versions	16-magnet version / 12-magnet version / 18-magnet version

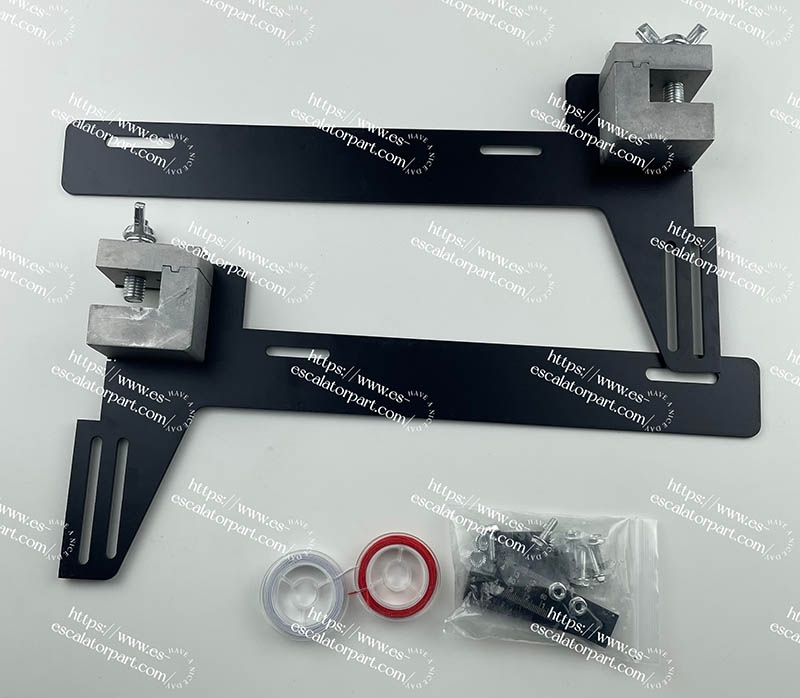

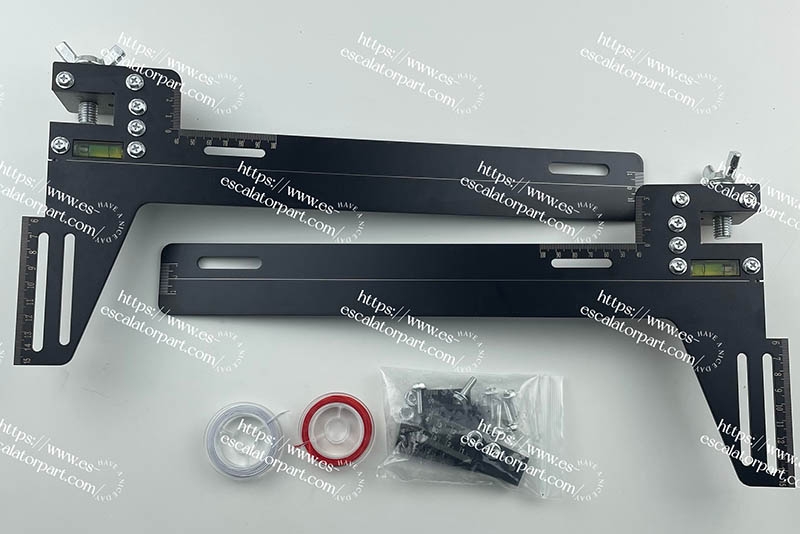

Standard Accessories	2 × Alignment Gauges, one pair of magnetic blocks, spirit level, full set of fasteners
Applicable Guide Rails	Mainstream T-type car & counterweight guide rails
Unit of Measure	SET



4.Product Function Description
• Fast On-site Operation: Quick magnetic mounting, no tool-aided locking required. Ideal for new elevator installation, old-elevator overhaul and guide-rail displacement correction.
• Vertical & Horizontal Calibration: Fit the fixture against the working surface of the guide rail. Observe the spirit-level reading, adjust to the center position via the top fine-tuning bolt, then lock it in place.
• Reference Positioning: Adopt the extended scales and baffles on both sides to assist installers in quickly marking reference lines or mounting hole positions inside the hoistway.
• Snapline Assistance: Use the included wire spool to rapidly set plumb or horizontal lines within the hoistway. Combined with the built-in scale, it enables precise positioning for complex locations.

5.Precautions
• Handle with Care: Do not drop, strike or knock the ruler body and magnetic blocks. Deformed ruler or damaged spirit bubble will directly result in invalid measurement.
• Magnetic-surface Cleaning: Remove rust and dust from the guide-rail surface before attaching magnetic blocks to ensure firm adhesion and prevent falling off during operation.
• Keep Away from Electronic Devices: Keep high-strength magnetic components away from control cabinet circuit boards and sensors to avoid magnetic-field interference with electronic parts.
• Storage Requirements: Wipe clean after use and store in a dry place. Prevent magnets from long-term attachment to steel materials to avoid demagnetization.

6.Supply & Service
• Genuine Quality Guarantee: The supplied SJT-56100 guide-rail measuring tool is manufactured by original Chinese factory with reliable quality.
• Flexible Order Quantities: We offer both single-piece retail and full-container bulk orders for export, catering to the procurement needs of overseas elevator maintenance companies, parts distributors, and complete elevator manufacturers in Southeast Asia, Europe, Australia, and other regions.
• Service Support: We provide comprehensive after-sales support and assist with the preparation of foreign trade documents, including packing lists and invoices.
• Warranty Service: Brand-new original products come with a standard warranty period. We strictly control the shipment of any defective items.
• Packaging & Logistics: Custom shock-proof and compression-resistant export cartons are used, suitable for domestic express, sea freight, and air freight cross-border logistics to minimize transit damage.

This manual is for product reference only. For specific installation and operation procedures, please refer to the official Genuine technical manual, and all work must be performed by certified professional technician.
