DX10A 16mm Sliding Guide Shoe | Wear-Resistant Accessory for Elevator T-Rails | Original Factory Quality

1. Product Overview

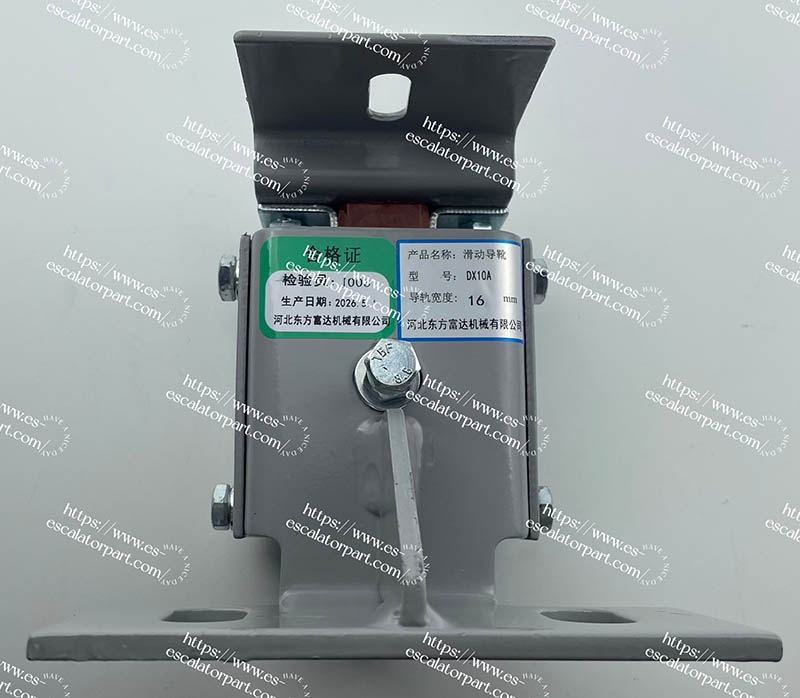

The DX10A sliding guide shoe is a core guiding component for elevator cars. By relying on the sliding contact between its wear-resistant shoe lining and the guide rail, it constrains the car's movement trajectory, buffers lateral impact forces during operation, and ensures smooth elevator performance. The DX10A sliding guide shoe is designed for medium- and low-speed elevator systems with a rated speed of ≤1.75 m/s and a load capacity of ≤1250 kg. This model supports compatibility with both 10mm and 16mm T-type guide rails. The stock shown in the image is the 16mm specification, which is the mainstream international guide rail standard. With its standardized mounting hole positions and stable mechanical performance, the DX10A stands out as a highly cost-effective alternative of choice. Whether used in complete elevator export projects under European and American standards, or for routine maintenance and replacement in regions like Southeast Asia, this product ensures reliable and durable guidance, effectively facilitating the efficient circulation of the spare parts supply chain for overseas engineering projects.

2.Core Product Features
• Precision Fit: The inner width is precisely positioned at 16mm, ensuring a tight fit with standard T-type guide rails, which effectively minimizes elevator car sway during operation.
• Robust Load Capacity: The structural design features exceptional rigidity, with a rated normal force resistance of up to 1000N and a lateral force resistance of up to 650N, making it highly suitable for heavy-load applications.
• Wear-Resistant & Noise-Reducing: Adopting a high-performance polymer wear-resistant lining with excellent self-lubricating properties, it effectively absorbs vibrations caused by guide rail joint misalignment and significantly reduces cabin operating noise.
• Convenient Maintenance: Equipped with a side adjustment screw featuring an anti-loosening design, it allows for quick on-site clearance adjustments, ensuring simple and efficient daily maintenance and replacement.

3.Technical Parameters

Parameter	Specification
Model No	DX10A
Product Name	SLIDING GUIDE SHOE
Manufacturer	Hebei Dongfang Fuda Machiner y Co., Ltd
Width of guide rails	16 mm (this series also offers a 10mm option)
Rated Speed	≤ 1.75m/s
Allowable gross mass	≤1250kg
Pressure on the front surface of guide rail	≤1000N
Pressure on the side surface of guide rail	≤650N
Quality Control (QC)	affixed with a factory inspection certificate


4.Product Function Description
• Vibration Damping & Noise Reduction: The elastic structure buffers shocks during starting, stopping, and traveling, effectively reducing car sway and abnormal noises.
• Protection & Isolation: The shoe lining acts as a consumable wear part, preventing direct metal-to-metal friction that would damage the guide rail surface.
• Stable Guidance: Securely mounted onto the elevator car or counterweight frame, it ensures vertical movement along the rails without lateral deviation.
• Safety Limiting: Provides bidirectional restraining force during elevator operation, effectively preventing mechanical derailment and ensuring overall system safety.

5.Precautions for Installation & Operation
• Clearance Control: When adjusting the nuts on both sides during installation, ensure a slight clearance of 0.5mm ~ 1.0mm is maintained between the guide shoe lining and the guide rail. Tightening the adjusting nuts completely is strictly prohibited, as this will lead to a sharp increase in guide rail friction resistance, car vibration, or even severe overheating.

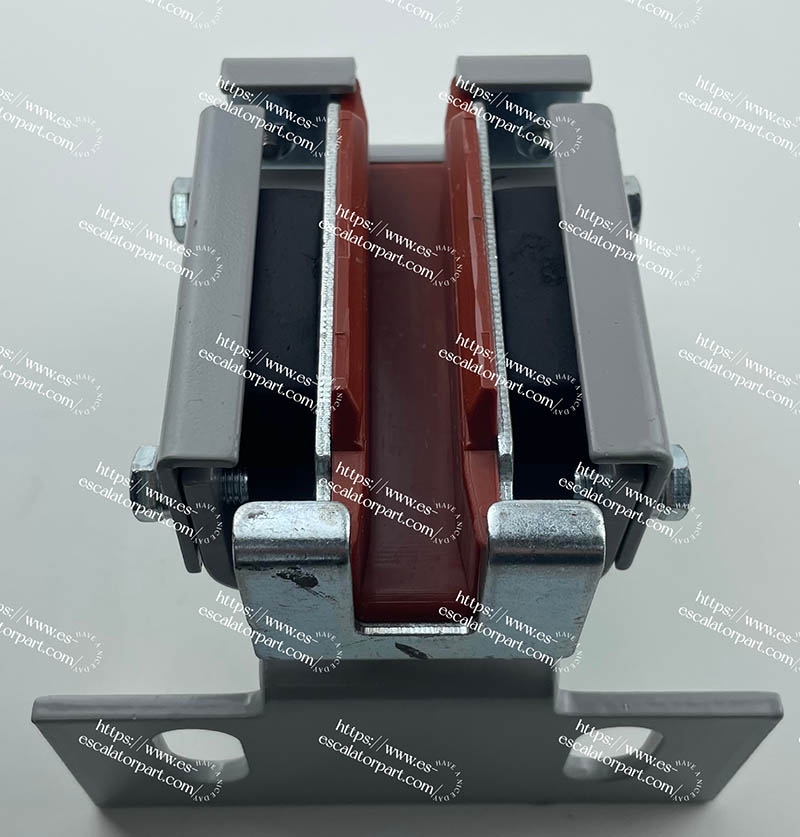

• Wear Inspection: During routine elevator maintenance, regularly inspect the wear condition of the inner red/brown shoe lining. When the wear depth exceeds 1/3 of the original lining thickness, the component must be replaced immediately.
• Periodic Re-tightening: It is recommended to re-tighten the side anti-loosening nuts and the base mounting bolts within the first week of elevator operation to prevent loosening caused by vibration.
• Standardized Usage: It is strictly forbidden to use this guide shoe beyond its rated operating speed (1.75 m/s) and rated load capacity (1250 kg).

6.Supply & Service
• Genuine WECO Quality: All supplied DX10A Sliding Guide Shoes are OEM-manufactured, guaranteeing dependable quality.
• Flexible Order Quantities: We offer both singlepiece retail and fullcontainer bulk orders for export, catering to the procurement needs of overseas elevator maintenance companies, parts distributors, and complete elevator manufacturers in Southeast Asia, Europe, Australia, and other regions.
• Service Support: We provide comprehensive aftersales support and assist with the preparation of foreign trade documents, including packing lists and invoices.
• Warranty Service: Brandnew original products come with a standard warranty period. We strictly control the shipment of any defective items.
• Packaging & Logistics: Custom shockproof and compressionresistant export cartons are used, suitable for domestic express, sea freight, and air freight crossborder logistics to minimize transit damage.

This manual is for product reference only. For specific installation and operation procedures, please refer to the official Hebei Dongfang technical manual, and all work must be performed by certified professional technician.
