Current position:Home > Escalator Brand > USE FOR OTIS > Chains and Newell Rollers > XAA332CJ11 Escalator Step Chain

XAA332CJ11 Escalator Step Chain Use For Otis

Basic Info:

Brand: Use For Otis

Model No: Otis XAA332CJ11

Index: Otis Escalator

Catalogue: Otis Escalator Spare Parts

OEM Part No.: XAA332CJ11

Description: XAA332CJ11 Escalator Step Chain Reinforced Complete Without Axles For 12 Steps 36 Links Left+36 Links Right+12pcs PIN Main d=15mm Slave d=12.7mm Roller 76x22mm With Roller Bearing 6203-2RS In Axles And Bushings In Others Bearings Pin-roller

Product Info:

Weight(KG):20

Size(M³):0.003

HS Code:8431310090

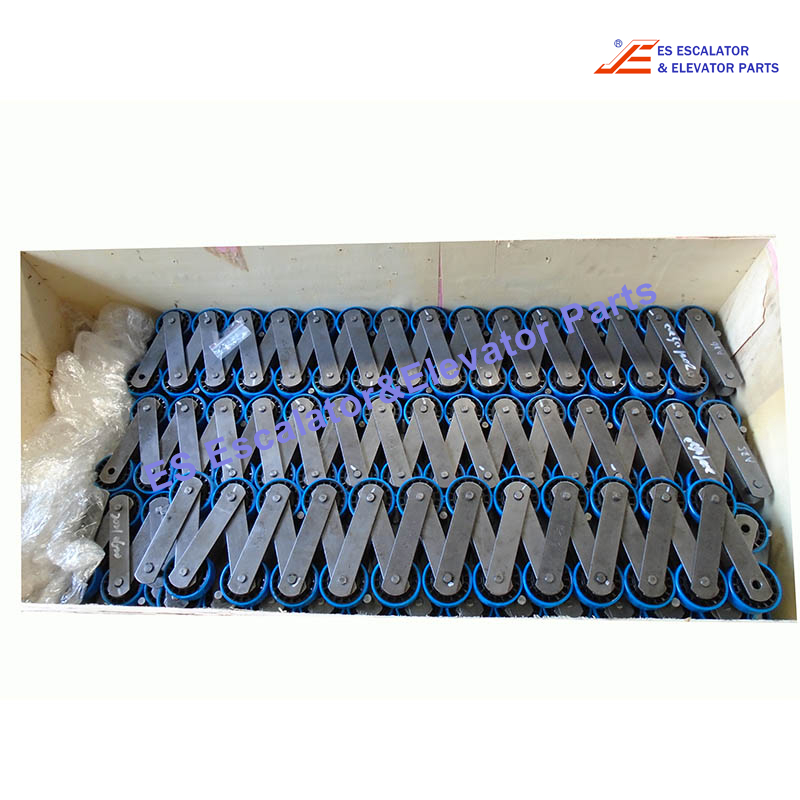

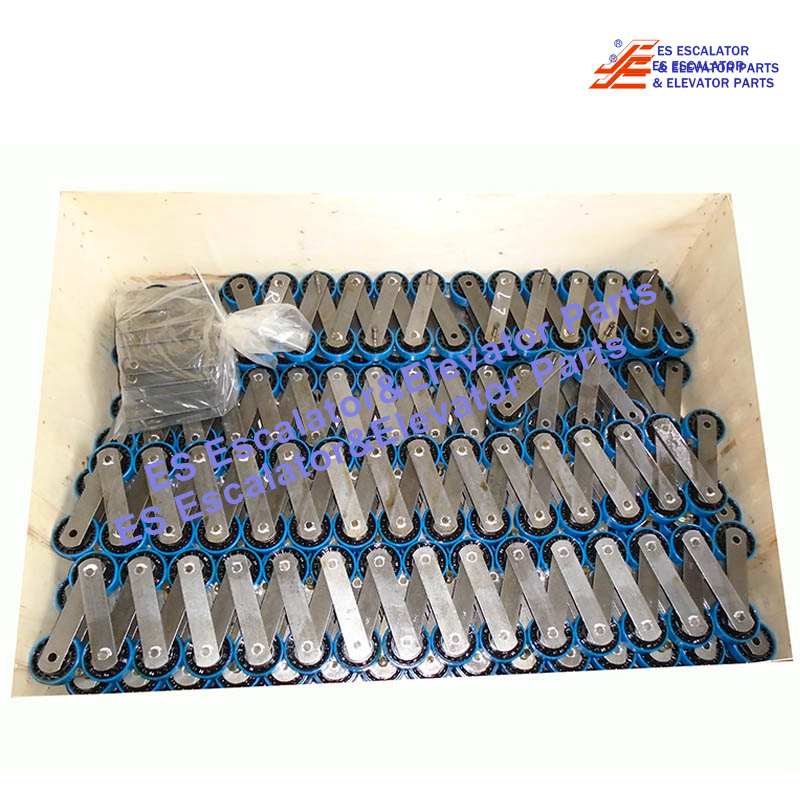

XAA332CJ11 Escalator Step Chain

XAA332CJ11 Escalator Step Chain Reinforced Complete Without Axles For 12 Steps 36 Links Left+36 Links Right+12pcs PIN Main d=15mm Slave d=12.7mm Roller 76x22mm With Roller Bearing 6203-2RS In Axles And Bushings In Others Bearings Pin-roller 6204 / 2 Slave-rollers Bushings Outer 30x5/Inner 35x5 Plates 90KN Use For Otis

Quantity:
